Outline Dimensions (Approximate Values)
B412/B432/ES4132
Top view
Side view
* : At the Letter paper.
A4 : 393mm, Legal14 : 452mm
If the second tray unit (optional) is installed
* : At the Letter paper.
A4 : 423mm, Legal14 : 481mm
B512/ES5112
Top View

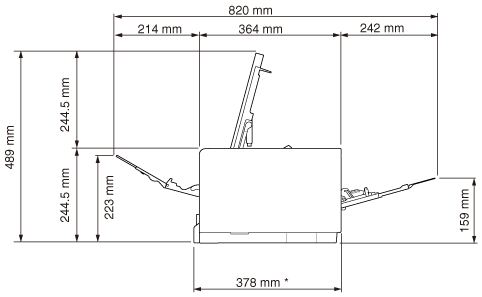

Side View
* : At the Letter paper.
A4 : 412mm, Legal14 : 470mm

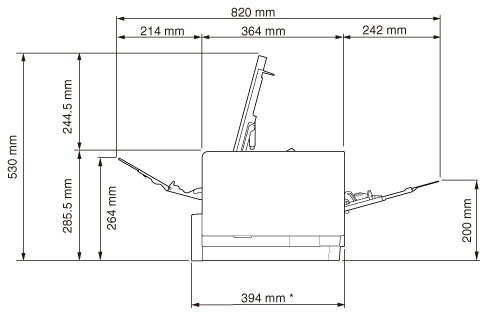

If the second tray unit (optional) is installed
* : At the Letter paper.
A4 : 423mm, Legal14 : 481mm
